Product name : MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Gender : Female

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Product Overview

The MCX series is a push-in self-locking RF connector known for its compact size, light weight, quick mating/unmating, and reliable electrical contact. It is widely used in applications where installation space is limited and high-performance signal transmission is required.

Applications

Transmission systems

Base station equipment

Instrumentation

GPS modules

Antennas

Product Features

Right-angle (bent) MCX female connector

Compatible with RG316/U coaxial cable

Compact and lightweight for space-constrained environments

Easy cable assembly and secure connection

Stable and high-performance electrical characteristics

Product Specifications

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-6GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.3

Insulation resistance

 ≥1000MΩ

Insertion loss

≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium copper, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

Product Image Gallery

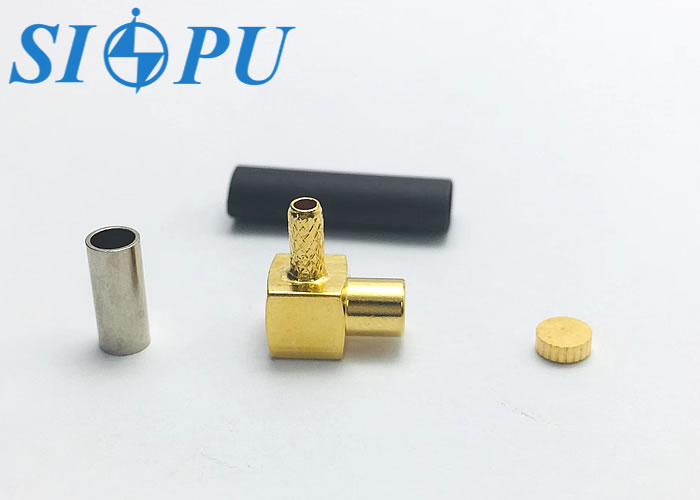

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U CableMCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable


Product Tags:

Female Right Angle MCX Connector



RF Right Angle MCX Connector



RG 316/U Cable RF Connector


China MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable wholesale

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable Images
